Car Power Door Lock Latch Actuator FC280 12V DC Motor Gear for Hyundai Sonata NF 2004-2010 Santa Fe CM I30 FD 2007-2012 1020300
NOTICE: Gear Direction: Clock 2-8 /
This listing is for 1 piece and this motor is suitable with Front or Rear Left or Right Door Lock.

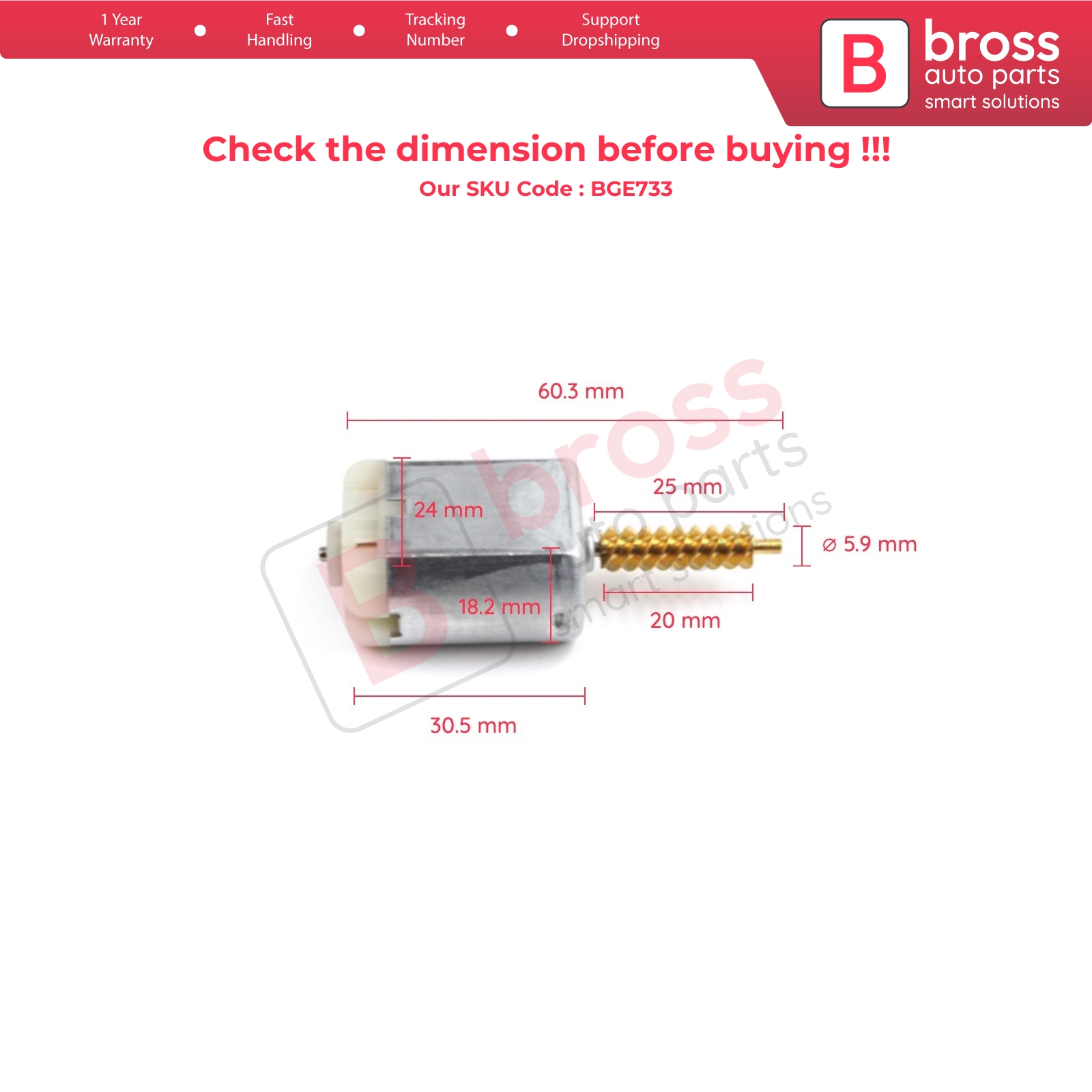

Total Length: 60.3 mm
Motor Shaft Length: 24 mm
Gear Teeth Length: 20 mm
Gear Diameter: 6.0 mm
Motor Operating:
Voltage: 12V DC
Current 0.08A;
Power 0.96W;
Torque 0.764 N.m;
No Load Speed: 12000-16000RPM
Mounting: Push-in style terminals.
Direction: Can be operated in either direction, simply reverse power supply polarity
Replacement Motor number : FC-280ST-20150, VD770817, 1020300 902045
Replacement part for OEM:
FC-280ST-20150, 1020300, 902045, 81310-3K520, 81320-3K520, 81410-3K520, 81420-3K520, 81310-3K020, 81320-3K030, 81410-3K000, 81420-3K001, 81420-3K000, 81310-2B020, 81320-2B010, 81410-2B000, 81420-2B000, 81310-2l070, 81320-2l060, 81410-2L000, 81420-2L210
Fits:
Hyundai:
Sonata MK5 NF 2004-2010;
Santa Fe MK2 CM 2007-2012;
I30 MK1 FD 2007-2012.
